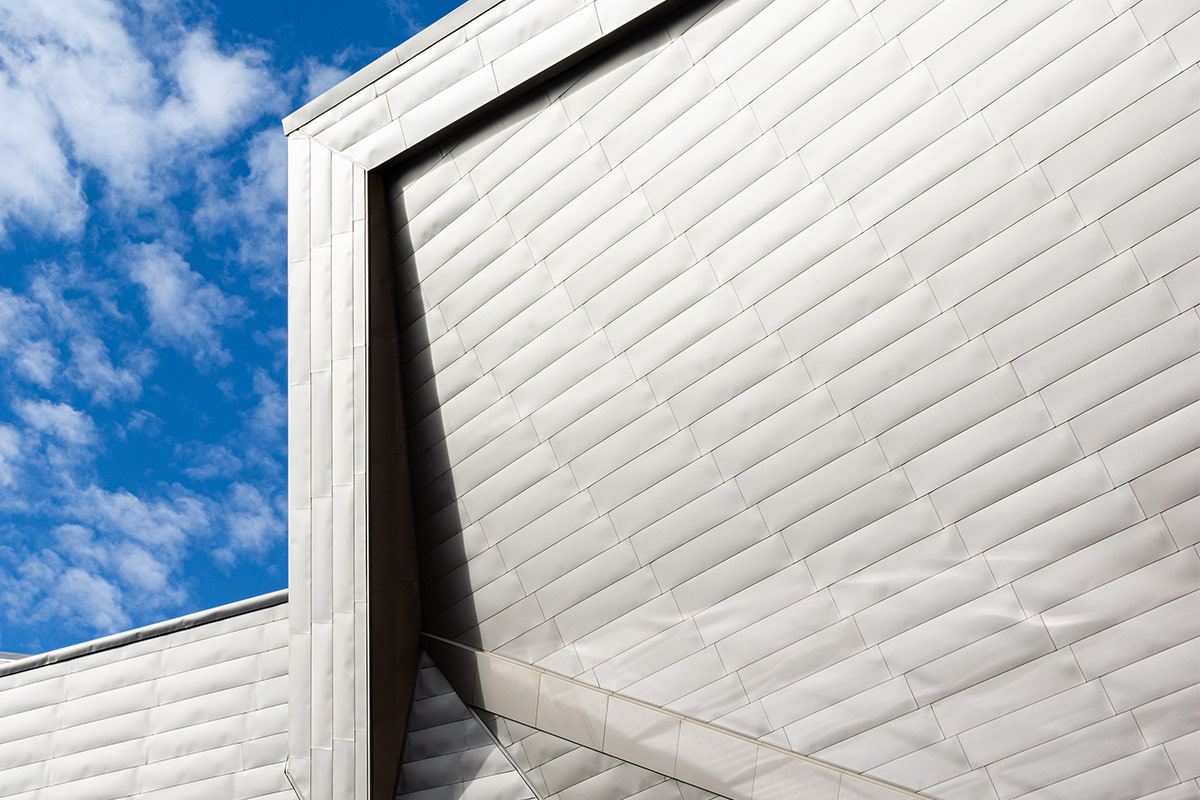

The MG S-Slip panel system is sturdy and offers the appearance of a smooth, flat seam with minimal oil canning. It features a slip connection that is mechanically fastened with integrated clips and concealed fasteners. The panels can be radiused or tapered and are installed from the bottom up in a sequential pattern, overlapped, and sealed as required to form a watertight system. The integral gutter channel provides superior drainage and allows for quick fastening without additional parts or assembly making this system easy and high performing
MG S-SLIP
FLAT LOCK STYLE PANEL SYSTEM
PANEL COMPOSITION
MATERIAL CHOICES & FINISHES
| MATERIAL | THICKNESS | FINISHES |
| Steel | 22 – 26 gauge | MG steel custom patina finishes, or standard and custom colors |
| Stainless | 24 – 26 gauge | Standard and custom colors available |
| Aluminum | .032” & .040” | Standard and custom colors available |
| Copper | 16oz, 20oz, & 24oz | MG copper custom patina finishes |
| Zinc | .7mm & .8mm | MG zinc custom patina finishes, or standard and custom colors |
| Titanium | 26 gauge | Standard and custom colors available |
*Materials, sizes, and thicknesses are general guidelines and estimates. Capabilities and options may vary as material gauge and panel length fluctuate. Please contact us for a more detailed range of size options and capabilities based on your project’s requirements and design intent (as engineering allows)*
TECHNICAL DATA & SPECIFICATIONS
FEATURES & OPTIONS
Features & Options
-
Includes slip connection clips and stiffeners if required
-
Panel system to accommodate substructure tolerance of +0 to -1/8 inch
-
Panels can be installed over almost any substrate
-
Custom alloys available based on material choice
-
Stamped shingle options available
